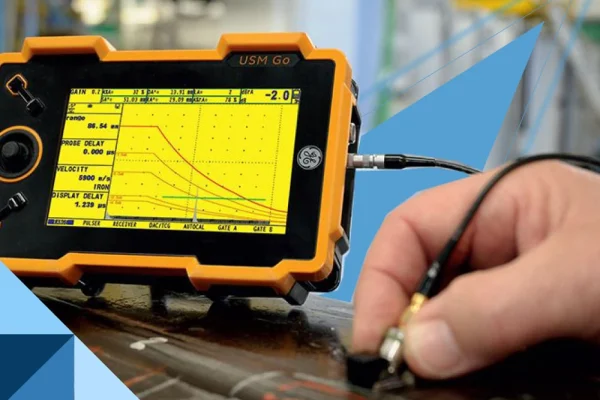

Ultrasonic Testing (UT) is a highly effective non-destructive testing (NDT) method like Visual Testing (VT) or Radiographic Testing (RT). used to detect internal defects in materials, measure thickness, and evaluate weld integrity. By utilizing high-frequency sound waves, UT provides precise and real-time inspection results for industries such as oil & gas, aerospace, power generation, and manufacturing.
In this guide, we will cover:
✔ What is Ultrasonic Testing (UT)?
✔ Applications of UT in industrial inspection
✔ How ultrasonic testing works
✔ Different techniques of UT
✔ Advantages and limitations of UT
✔ Advanced ultrasonic testing methods
Let’s explore how UT ensures the reliability and safety of critical components!
What is Ultrasonic Testing (UT)?
Ultrasonic Testing (UT) is an NDT technique that uses high-frequency ultrasonic waves to inspect the internal structure of materials. These sound waves travel through the object, and any discontinuity (cracks, voids, or material changes) reflects the waves back to a detector, helping identify defects.
✔ Purpose: Detect internal and surface defects, measure thickness, and evaluate weld quality.
✔ Applicable Materials: Metals, composites, plastics, and ceramics.
✔ Common Applications: Pipeline inspection, aerospace component testing, pressure vessel integrity checks, and structural steel evaluation.
Applications of Ultrasonic Testing (UT)
UT is widely used in multiple industries to ensure material integrity and detect hidden defects.
| Industry | UT Application |
| Oil & Gas | Pipeline corrosion detection, weld integrity assessment |
| Aerospace | Aircraft structural inspections, turbine blade evaluation |
| Power Plants | Steam turbine testing, pressure vessel integrity checks |
| Automotive | Engine component testing, spot weld inspections |
| Manufacturing | Quality control in casting, forging, and rolled materials |
How Does Ultrasonic Testing (UT) Work?
The UT process follows a structured approach to ensure accurate defect detection:
1️⃣ Generating Ultrasonic Waves
✔ A transducer sends high-frequency sound waves into the material.
✔ The sound waves travel through the material until they encounter a defect or the back surface.
2️⃣ Detecting Reflected Waves
✔ Any cracks, voids, or discontinuities reflect sound waves back to the transducer.
✔ The signal is then analyzed on a screen to determine defect size and location.
3️⃣ Interpreting the Results
✔ Inspectors evaluate wave reflections to classify defects based on shape, depth, and severity.
Techniques of Ultrasonic Testing (UT)
🔹 1) Pulse-Echo Method
✔ The same transducer acts as both transmitter and receiver.
✔ Sound waves reflect off internal defects and return to the probe.
✔ Best for thickness measurement and detecting internal voids.
🔹 2) Through-Transmission Method
✔ Uses two transducers, one as a transmitter and one as a receiver.
✔ Sound passes completely through the material.
✔ Best for detecting large flaws where sound transmission is disrupted.
| Method | Best For | Limitations |
| Pulse-Echo | Thickness measurement, internal cracks | May miss very small defects |
| Through-Transmission | Large flaw detection, composite material testing | Requires access to both sides of the material |
Advantages of Ultrasonic Testing (UT)
UT offers several benefits compared to other NDT methods:
✔ High Accuracy – Detects even small defects with precise depth and size measurement.
✔ Non-Destructive – Does not damage the test object.
✔ Instant Results – Provides real-time imaging and analysis.
✔ Penetrates Thick Materials – Effective for inspecting large and dense structures.
✔ Portable Equipment – Suitable for on-site and in-service inspections.
✔ Minimal Surface Preparation – Only requires basic cleaning.
Limitations of Ultrasonic Testing (UT)
Despite its advantages, UT has some challenges:
❌ Skilled Operators Required – Accurate defect interpretation needs experienced inspectors.
❌ Difficult on Complex Shapes – Curved surfaces can affect wave transmission.
❌ Limited Surface Accessibility – Couplant (gel) is required to transmit sound waves effectively.
❌ Not Ideal for Porous Materials – Sound waves scatter in rough or highly absorbent materials.
Advanced Ultrasonic Testing Methods
To enhance defect detection, advanced UT techniques provide higher resolution and deeper penetration:
🔹 1) Phased Array Ultrasonic Testing (PAUT)
✔ Uses multiple transducers that fire sound waves in a controlled sequence.
✔ Provides 3D imaging of internal structures.
✔ Best for weld inspections, aerospace, and complex geometries.
🔹 2) Electromagnetic Acoustic Transducer (EMAT)
✔ Generates sound waves using electromagnetic fields instead of couplants.
✔ Ideal for high-temperature environments and rough surfaces.
✔ Commonly used in pipeline inspection and corrosion assessment.
| Advanced Method | Key Features | Best Applications |
| PAUT | High-resolution imaging, precise defect sizing | Weld inspections, aerospace components |
| EMAT | No couplant needed, works on hot/rough surfaces | Corrosion detection, high-temperature materials |
Ultrasonic Testing (UT) Inspection Checklist
A structured UT checklist ensures a thorough, accurate, and compliant inspection process. Below is a detailed UT checklist covering key aspects of preparation, execution, and evaluation.
Ultrasonic Testing (UT) Pre-Inspection Checklist
| Task | Details | Status (✔/❌) |
| Verify Inspection Plan | Ensure compliance with industry standards (ASME, AWS, ISO, etc.). | ⬜ |
| Review UT Procedure | Check test frequency, probe type, and acceptance criteria. | ⬜ |
| Ensure Operator Qualification | Confirm inspectors are certified (e.g., ASNT Level II or III). | ⬜ |
| Select Appropriate UT Method | Choose between Pulse-Echo, Through-Transmission, PAUT, or EMAT. | ⬜ |
| Confirm Material & Geometry | Identify material type, thickness, and surface condition. | ⬜ |
| Verify Equipment Calibration | Check UT device calibration using reference standards. | ⬜ |
| Prepare Couplant (if needed) | Ensure appropriate couplant for better sound wave transmission. | ⬜ |
| Ensure Proper Surface Condition | Clean the surface to remove rust, paint, or contaminants. | ⬜ |
| Check Environmental Conditions | Avoid extreme temperatures or vibrations that could affect results. | ⬜ |
UT Execution Checklist
| Task | Details | Status (✔/❌) |
| Correct Probe Selection | Use the correct transducer (single/multi-element, angle, frequency). | ⬜ |
| Adjust UT Parameters | Set gain, frequency, and pulse repetition rate based on material. | ⬜ |
| Proper Probe Positioning | Ensure smooth, even contact for accurate signal transmission. | ⬜ |
| Scan the Component Methodically | Follow approved scanning patterns (e.g., zigzag, raster). | ⬜ |
| Monitor A-Scan/B-Scan Display | Observe live signals and adjust as needed. | ⬜ |
| Use Reference Standards | Compare signals with standard calibration blocks. | ⬜ |
| Ensure Proper Coupling (if applicable) | Reapply couplant when necessary to avoid signal loss. | ⬜ |
| Verify Defect Indications | Mark potential defect locations and record readings. | ⬜ |
Post-Inspection & Evaluation Checklist
| Task | Details | Status (✔/❌) |
| Analyze UT Readings | Interpret amplitude, signal reflection, and attenuation. | ⬜ |
| Compare Findings with Acceptance Criteria | Evaluate defects using industry codes (ASME, AWS, ISO). | ⬜ |
| Confirm Defect Sizing & Depth Measurement | Verify size and depth of detected flaws. | ⬜ |
| Record & Document Results | Maintain digital or hardcopy records for traceability. | ⬜ |
| Prepare Inspection Report | Include defect location, UT readings, and recommendations. | ⬜ |
| Verify Data Integrity | Cross-check findings with secondary inspection (if needed). | ⬜ |
Final Compliance & Review
| Task | Details | Status (✔/❌) |
| Ensure All Safety Procedures Were Followed | Confirm compliance with radiation and electrical safety. | ⬜ |
| Verify Equipment Calibration Logs | Ensure calibration is up-to-date and properly documented. | ⬜ |
| Confirm Inspection Meets Regulatory Standards | Check that results align with ASME, ISO, AWS, or customer requirements. | ⬜ |
| Recommend Necessary Repairs or Further Testing | Advise corrective actions if defects exceed acceptance limits. | ⬜ |
📌 Notes:
- For Advanced UT (PAUT/EMAT), additional steps may be required, such as beam focusing adjustments, phased array imaging review, and additional software-based analysis.
- For critical components, results may need a secondary verification using another NDT method (e.g., RT or MT).
- Ensure all reports and UT scan records are securely stored for future reference.
This checklist provides a comprehensive framework to optimize UT inspections, ensure compliance, and maintain accuracy in defect detection.
Frequently Asked Questions About Ultrasonic Testing (UT)
What types of defects can Ultrasonic Testing (UT) detect?
UT is highly effective for detecting subsurface defects such as cracks, voids, porosity, and delaminations in metals, composites, and welds. It is commonly used in industries requiring structural integrity verification.
What is the difference between Conventional UT and Phased Array UT (PAUT)?
Conventional UT uses a single beam to inspect materials, while Phased Array UT (PAUT) utilizes multiple elements for multi-angle scanning, better imaging, and increased defect detection accuracy.
Can UT be used on all materials?
UT is best suited for dense materials like metals, ceramics, and composites. However, it is less effective for porous materials or thin surfaces where sound waves may scatter or attenuate too quickly.
Conclusion: Why Ultrasonic Testing (UT) is Essential for Industrial Inspections
