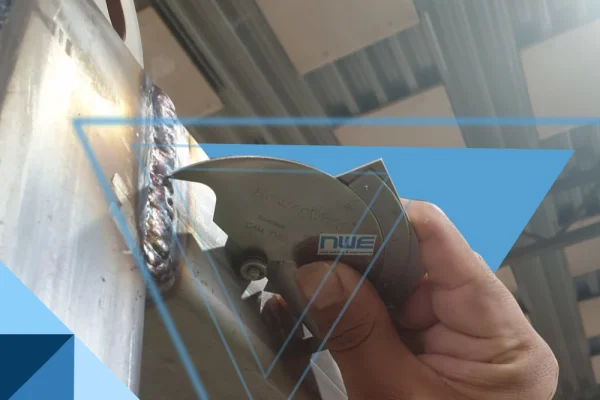

Visual Testing (VT) – Complete Guide to the First Step of NDT Inspection

Visual Testing (VT) is one of the most widely used Non-Destructive Testing (NDT) methods, designed to detect surface defects in materials, components, and welded structures. As the first line of inspection, VT helps identify cracks, corrosion, misalignment, and welding discontinuities before applying more advanced NDT methods like Ultrasonic Testing (UT) or Radiographic Testing (RT).

This guide covers:
✔ What is Visual Testing (VT) in NDT?
✔ Types of Visual Testing – Direct vs. Remote
✔ Step-by-step VT process
✔ Common defects detected by VT
✔ Advantages, limitations, and industry standards

Let’s explore how Visual Testing (VT) ensures quality and safety in industrial applications!



What is Visual Testing (VT) in NDT? – Definition & Applications

Visual Testing (VT) is a structured surface inspection technique used to detect visible defects in materials and components. It involves examining surfaces with the naked eye or using optical aids such as borescopes, magnifiers, mirrors, and digital cameras.

📌 VT is commonly used to inspect:
✔ Welds and joints for cracks, undercuts, and lack of fusion.
✔ Pipelines, pressure vessels, and tanks for corrosion and leaks.
✔ Structural components for misalignment, deformation, and coating damage.
✔ Manufacturing defects in castings, forgings, and machined parts.

Industries that rely on VT:
✅ Oil & Gas – Pipeline and pressure vessel inspection.
✅ Aerospace – Aircraft fuselage, turbine blades, and landing gear.
✅ Automotive – Welded joints and structural integrity checks.
✅ Construction – Bridge and building inspections for cracks and corrosion.

VT is quick, cost-effective, and provides real-time results, making it an essential NDT method across multiple industries.



🔹 Types of Visual Testing – Direct vs. Remote

Visual Testing (VT) is categorized into two main types based on inspection accessibility and equipment used:

1️⃣ Direct Visual Testing (DVT)

✔ Performed with the naked eye or using hand tools like magnifying glasses, flashlights, and mirrors.
✔ Best for easily accessible areas with good lighting conditions.
✔ Commonly used for weld inspections, structural components, and surface coatings.

2️⃣ Remote Visual Testing (RVT)

✔ Uses borescopes, fiber-optic cameras, drones, and robotic inspection systems.
✔ Ideal for hard-to-reach or hazardous areas, such as pipelines, boilers, and confined spaces.
✔ Allows for real-time monitoring and high-resolution image analysis.

📌 Which One Should You Use?

• DVT is the best choice for simple, surface-level inspections in open areas.
• RVT is necessary for complex, enclosed, or high-risk environments where direct inspection is not feasible.



Step-by-Step Process of Visual Testing (VT) for Quality Assurance

Performing Visual Testing (VT) effectively requires systematic planning and execution.

1️⃣ Preparation – Review inspection requirements, blueprints, and previous reports.
2️⃣ Lighting & Accessibility Check – Ensure proper illumination and position tools for the best visibility.
3️⃣ Surface Cleaning – Remove dirt, grease, or coatings that may obscure defects.
4️⃣ Examination of Key Areas – Focus on welds, joints, high-stress zones, and corrosion-prone areas.
5️⃣ Defect Identification – Look for cracks, misalignment, rust, leaks, or mechanical damage.
6️⃣ Recording Findings – Capture images, notes, and measurements for documentation.
7️⃣ Reporting & Recommendations – Prepare a detailed report with corrective actions if needed.

📌 Following this structured process ensures accurate and repeatable inspections.



Common Defects Detected by Visual Testing (VT)

Visual Testing is highly effective in detecting various surface defects, including:

✔ Weld Defects – Cracks, incomplete fusion, porosity, undercutting, slag inclusions.
✔ Corrosion & Material Degradation – Rust, oxidation, pitting, scaling, thinning.
✔ Mechanical Damage – Dents, deformation, surface wear, impact damage.
✔ Coating & Paint Defects – Peeling, blistering, uneven thickness, contamination.
✔ Structural Issues – Misalignment, warping, lack of penetration in joints.

📌 Early detection of these defects helps prevent costly failures and ensures structural integrity.



Advantages & Limitations of Visual Testing (VT) in NDT

✅ Advantages of VT

✔ Cost-effective & simple – Requires minimal equipment.
✔ Immediate results – Defects are identified in real time.
✔ Portable & flexible – Can be performed in the field or in factories.
✔ No radiation or special safety measures needed – Unlike RT or UT.

❌ Limitations of VT

❌ Limited to surface defects – Cannot detect internal flaws.
❌ Dependent on inspector experience – Requires trained personnel for accuracy.
❌ Affected by lighting & accessibility – Poor lighting or restricted areas reduce effectiveness.

📌 For deeper inspections, methods like UT or RT should be used alongside VT.



Visual Testing (VT) Standards & Codes – ASME, AWS, ISO Compliance

VT must adhere to strict industry standards to ensure accuracy and reliability.

✔ ASME BPVC Section V – VT for pressure vessels, pipelines, and structural components.
✔ AWS D1.1 – Visual inspection of welding quality in structural steel.
✔ ISO 17637 – International standard for visual examination of welds.
✔ API 570 – VT procedures for pipeline and pressure system inspections.

📌 Following these standards ensures compliance and reliable defect detection.



Visual Testing (VT) Inspection Checklist – Comprehensive Guide

A well-structured Visual Testing (VT) checklist ensures accuracy, consistency, and compliance with industry standards. This checklist helps inspectors conduct thorough evaluations, minimizing the risk of overlooked defects.

Pre-Inspection Checklist

Before starting the VT process, ensure all preparatory steps are completed.

Step	Task	Status (✔/✘)
Inspection Plan Review	Verify inspection requirements, standards (ASME, AWS, ISO), and acceptance criteria.	⬜
	Review blueprints, welding procedures, and previous reports for reference.	⬜
Inspector Qualification	Ensure the inspector has the necessary VT certification and experience.	⬜
Lighting & Accessibility Check	Confirm proper illumination (minimum 500 lux for standard VT, 1000 lux for fine-detail inspection).	⬜
	Ensure access to hard-to-reach areas (ladders, borescopes, mirrors).	⬜
Surface Preparation	Remove dirt, oil, grease, rust, scale, and coatings that could obscure defects.	⬜
	Verify that cleaning methods (solvent wiping, blasting) do not alter defects.	⬜
Equipment Readiness	Check inspection tools (flashlights, magnifiers, borescopes, cameras) for proper functionality.	⬜

Execution Phase – Conducting the VT Inspection

Perform a systematic examination of the test piece, ensuring all critical areas are inspected.

Step	Task	Status (✔/✘)
Surface Condition Inspection	Identify surface irregularities such as scratches, pitting, corrosion, or oxidation.	⬜
Weld Inspection	Examine welds for cracks, porosity, undercutting, incomplete fusion, and lack of penetration.	⬜
	Check for excessive spatter or weld misalignment.	⬜
Structural Integrity Check	Look for distortion, warping, loose connections, or misalignment in components.	⬜
Coating & Paint Inspection	Verify adhesion, uniformity, and signs of peeling, blistering, or contamination.	⬜
Fasteners & Connections	Check for missing bolts, loose rivets, or any visible signs of fatigue failure.	⬜
Corrosion & Erosion Detection	Identify rust, scaling, and material thinning in high-risk areas.	⬜
Dimensional & Alignment Verification	Use gauges or measuring tools to confirm compliance with design tolerances.	⬜

Post-Inspection & Documentation

A proper recording and reporting process ensures traceability and regulatory compliance.

Step	Task	Status (✔/✘)
Findings Documentation	Record defect locations, dimensions, and severity with notes and sketches.	⬜
	Capture images or videos for further analysis.	⬜
Classification of Defects	Compare findings against acceptance criteria from ASME, AWS, or ISO standards.	⬜
Reporting & Recommendations	Generate a formal inspection report with corrective actions (repair, rework, or further NDT testing).	⬜
	Review findings with the engineering or maintenance team for decision-making.	⬜
Final Review & Compliance Check	Ensure all safety and quality standards have been met.	⬜

Using this detailed checklist ensures a standardized, thorough, and industry-compliant VT inspection.
