Eddy Current Testing (ECT) – Complete Guide to Non-Destructive Inspection

Eddy Current Testing (ECT) is a powerful NDT method used to detect surface and near-surface defects in conductive materials. By using electromagnetic induction, ECT identifies cracks, corrosion, material thickness variations, and weld discontinuities without damaging the tested component.

This inspection technique is widely used in aerospace, oil & gas, power generation, and manufacturing industries, providing fast, reliable, and highly sensitive defect detection.

In this guide, we will cover:
✔ What is Eddy Current and how does it work?
✔ How Eddy Current Testing (ECT) is performed
✔ Common applications of ECT in industrial inspections
✔ Advantages & limitations of ECT compared to other NDT methods
✔ Advanced ECT techniques for improved flaw detection

Let’s dive into the principles and practical applications of Eddy Current Testing (ECT)!

What is Eddy Current?

Eddy currents are circular electrical currents induced in conductive materials when exposed to a changing magnetic field. These currents interact with the material and create measurable electromagnetic responses that indicate surface irregularities, defects, or material property changes.

How Eddy Currents Are Generated

When an alternating current (AC) flows through a coil, it creates a fluctuating magnetic field. If this field interacts with a conductive material, eddy currents are induced within the material. Any defect or change in material properties disrupts these currents, which can be detected and analyzed by specialized ECT equipment.

Factors Affecting Eddy Currents

Several factors influence the behavior and sensitivity of eddy currents, including:
🔹 Material Conductivity – Higher conductivity (e.g., aluminum, copper) leads to stronger eddy currents.
🔹 Magnetic Permeability – Ferromagnetic materials affect eddy current flow differently than non-magnetic materials.
🔹 Frequency of the AC Current – Higher frequencies improve surface defect detection, while lower frequencies allow deeper penetration.
🔹 Probe Design & Coil Configuration – Different probe shapes and coil arrangements optimize ECT for specific applications.

What is Eddy Current Testing (ECT) in Non-Destructive Testing (NDT)?

Eddy Current Testing (ECT) is an electromagnetic inspection technique used to detect flaws in conductive materials without requiring direct contact or surface preparation.

How ECT Works: Step-by-Step

1️⃣ An alternating current (AC) is applied to the probe coil, generating a fluctuating magnetic field.
2️⃣ The coil is moved over the test material, inducing eddy currents within the material’s surface.
3️⃣ Disruptions in eddy currents caused by defects (such as cracks, corrosion, or thickness variations) alter the coil’s impedance.
4️⃣ The ECT instrument analyzes impedance changes, providing visual data for defect interpretation.

Types of Defects Detectable by ECT

ECT is highly effective in detecting surface and near-surface defects, including:
✔ Cracks & Fatigue Damage – Surface-breaking cracks, weld defects, and fatigue-induced fractures.
✔ Corrosion & Material Loss – Detecting thinning and pitting corrosion in pipelines, heat exchangers, and aircraft components.
✔ Coating & Thickness Variations – Measuring non-conductive coatings, plating thickness, and material wear.
✔ Hardness & Material Property Changes – Identifying heat treatment inconsistencies and structural variations.

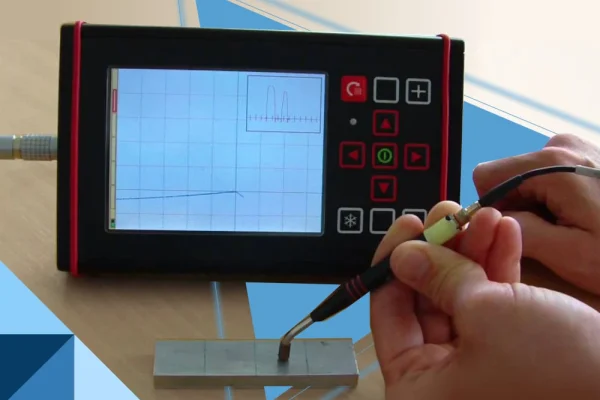

Key Components of an ECT System

🔹 Probe & Coil – Generates and detects eddy currents.
🔹 Signal Processing Unit – Analyzes impedance changes for defect identification.
🔹 Display System – Provides real-time imaging and interpretation of inspection results.

ECT is widely preferred for fast, portable, and highly sensitive inspections, especially in industries that require frequent preventive maintenance and quality control.

Applications of Eddy Current Testing (ECT) in Various Industries

Eddy Current Testing (ECT) is a versatile inspection method used across multiple industries to detect structural defects, material degradation, and welding flaws.

Industry	Applications
Aerospace Industry	Detects fatigue cracks in aircraft fuselage, turbine blades, and landing gear; ensures surface integrity of aluminum & composite structures
Oil & Gas Industry	Identifies corrosion in pipelines, heat exchangers, and pressure vessels; monitors wall thickness in offshore equipment.
Power Generation	Inspects steam generator tubes and boiler components; analyzes turbine blade defects for safety.
Automotive Industry	Ensures weld quality in chassis & structural parts; detects cracks in engine components & brakes
Manufacturing & Metal Processing	Sorts materials by conductivity & hardness; measures coating & plating thickness.

ECT’s ability to perform rapid and non-invasive inspections makes it an indispensable tool for quality assurance and maintenance across industries.

Eddy Current Testing (ECT) for Welding Inspection

Welding Inspections are essential for ensuring structural integrity and safety across industries such as oil & gas, aerospace, and manufacturing. Eddy Current Testing (ECT) offers a fast, non-contact method for detecting surface and near-surface weld defects, minimizing the need for extensive surface preparation.

How ECT is Used for Welding Inspection

ECT effectively evaluates weld quality by detecting cracks, porosity, lack of fusion, and other discontinuities. The inspection process follows these key steps:

Step	Process
1️⃣ Probe Selection	Choose the appropriate probe (pencil probe, encircling coil, or array probe) based on weld geometry and material.
2️⃣ Calibration & Frequency Setting	Adjust the ECT instrument for optimal sensitivity based on material type and thickness.
3️⃣ Scanning the Weld Area	Move the probe along the weld bead and heat-affected zone (HAZ) to assess integrity.
4️⃣ Detecting Indications	Variations in eddy currents reveal potential defects, which are analyzed for size and severity.
5️⃣ Recording & Interpretation	Data is reviewed against industry standards and documented for further evaluation.

ECT is particularly valuable for detecting fine cracks and defects in conductive materials while offering quick, reliable results without damaging the weld

Common Weld Defects Detected by ECT

🔹 Surface cracks & fatigue cracks – Small cracks from stress or poor welding techniques.
🔹 Lack of fusion – Incomplete bonding between base metal and weld.
🔹 Porosity & inclusions – Gas pockets or foreign materials trapped in the weld.
🔹 Heat-affected zone (HAZ) variations – Changes in material properties due to excessive heat input.

Unlike other methods like Magnetic Particle Testing (MT) or Liquid Penetrant Testing (PT), ECT does not require special chemicals, making it a clean, fast, and efficient inspection method for non-ferrous and some ferromagnetic materials.

Advanced Eddy Current Testing (ECT) Techniques for High-Precision Inspections

Modern Eddy Current Testing (ECT) has evolved with advanced techniques that enhance defect detection, inspection speed, and accuracy for complex structures.

1️⃣ Phased Array Eddy Current Testing (PA-ECT)

PA-ECT uses multiple coil elements to create electronically controlled scanning patterns, improving flaw detection.
✅ Multi-angle scanning for detecting complex defects.
✅ Higher resolution imaging for better flaw characterization.
✅ Faster inspections with automated data analysis.

2️⃣ Eddy Current Array (ECA) Testing

ECA technology enhances traditional ECT by using multiple coils in a single probe, increasing coverage and accuracy.
✅ Covers larger surface areas in one pass.
✅ Reduces probe positioning errors for improved detection.
✅ Ideal for curved surfaces and weld inspections.

3️⃣ Pulsed Eddy Current (PEC) Testing

PEC is designed for coated and insulated components, where conventional ECT has limitations.
✅ Detecting corrosion under insulation (CUI) in pipelines and tanks.
✅ Measuring wall thickness of insulated structures.
✅ Non-contact inspections through coatings, paint, and corrosion barriers.

📌 These advanced ECT methods improve accuracy, speed, and defect detection for critical infrastructure inspections



Advantages & Limitations of Eddy Current Testing (ECT)

Like any NDT method, Eddy Current Testing (ECT) has its strengths and limitations. Understanding these factors helps industries choose the best inspection technique for their needs.

Advantages of Eddy Current Testing (ECT)

✔ Non-contact inspection – No need for surface contact, making it ideal for delicate components.
✔ Fast & high-sensitivity detection – Real-time results allow for quick defect identification.
✔ No surface preparation required – Works effectively on painted or coated materials.
✔ Can detect micro-cracks and other small defects invisible to other NDT methods.
✔ Can be automated for high-speed, large-scale inspections.
✔ Works on complex shapes & curved surfaces – Unlike traditional methods like Ultrasonic Testing (UT).

Limitations of Eddy Current Testing (ECT)

❌ Limited penetration depth – Best suited for surface and near-surface defects.
❌ Requires conductive materials – Cannot inspect non-metallic materials.
❌ Highly sensitive to material variations – Conductivity and permeability changes can affect accuracy.
❌ Requires skilled operators – Interpretation of ECT signals needs expertise.

Despite these limitations, ECT remains one of the most effective NDT methods for inspecting conductive materials, particularly in aerospace, oil & gas, and manufacturing industries.



Eddy Current Testing (ECT) Standards and Codes

Eddy Current Testing (ECT) follows strict industry standards and codes to ensure accurate inspections, proper equipment calibration, and reliable data interpretation. Below are some of the most commonly referenced ECT standards across different industries:

 ✔ ASTM Standards for Eddy Current Testing

Standard	Description
ASTM E309	Eddy Current Examination of Steel Tubular Products Using Magnetic Saturation
ASTM E426	Electromagnetic (Eddy Current) Examination of Seamless and Welded Tubular Products (Titanium, Stainless Steel, etc.)
ASTM E570	Flux Leakage Examination of Ferromagnetic Steel Tubular Products
ASTM E571	Eddy Current Examination of Nickel and Nickel Alloy Tubular Products

 ✔ ASNT Standards for Eddy Current Testing

Standard	Description
ASNT SNT-TC-1A	Recommended Practice for Qualification and Certification of NDT Personnel
ASNT CP-105	Standard Topical Outlines for NDT Personnel Qualification
ASNT CP-189	ASNT Standard for Qualification and Certification of NDT Personnel
ASNT SNT-TC-1A-2021	Latest Recommended Practice for NDT Personnel Certification

 ✔ ISO Standards for Eddy Current Testing

Standard	Description
ISO 15549	Eddy Current Testing of Welds by Complex Plane Analysis
ISO 17643	Eddy Current Testing of Welds by Encircling or Sectorial Scanning
ISO 21968	Vocabulary for Eddy Current Testing

 ✔ Aerospace Industry Standards for ECT

Standard	Description
NAS 410	National Aerospace Standard for NDT Personnel Qualification & Certification
AMS 2644	Aerospace Material Specification for Liquid Penetrant Inspection
ASTM E1417	Standard Practice for Liquid Penetrant Testing

Following these standards ensures consistent, high-quality Eddy Current Testing in industries such as oil & gas, aerospace, power generation, and manufacturing



Comprehensive Eddy Current Testing (ECT) Inspection Checklist

A structured ECT checklist ensures that inspections are conducted accurately, efficiently, and in compliance with industry standards.

Category	Checklist Item	Status (✔/✘)
Pre-Inspection Preparation
Verify inspection plan	Ensure compliance with standards (ASME, ASTM, ISO, etc.)	⬜️
Select appropriate probe & frequency	Choose based on material type & defect sensitivity	⬜️
Ensure proper calibration	Use reference blocks for accuracy verification	⬜️
Check surface conditions	Ensure no excessive dirt, rust, or debris	⬜️
ECT Execution
Proper probe positioning	Maintain correct probe contact and alignment	⬜️
Set correct scanning speed	Avoid excessive movement to prevent signal distortion	⬜️
Monitor signal response	Identify impedance changes indicating defects	⬜️
Record data accurately	Store inspection readings for analysis	⬜️
Post-Inspection Analysis
Interpret ECT signals	Compare defect indications with reference standards	⬜️
Verify results with acceptance criteria	Ensure findings meet industry requirements	⬜️
Document & report findings	Provide clear defect location, severity, and recommendations	⬜️

Common Eddy Current Testing (ECT) Inspections

Eddy Current Testing (ECT) is widely used for inspecting conductive materials across multiple industries. Below are the key applications of ECT in defect detection and material assessment:



• ✔ Surface Crack Detection – Identifies fatigue, stress, or corrosion-induced cracks on metal surfaces.
• ✔ Material Thickness Measurement – Measures pipe, tube, and plate thickness without contact, ideal for corrosion monitoring.
• ✔ Conductivity & Material Characterization – Detects alloy variations, heat treatment effects, and material degradation.
• ✔ Coating Thickness Measurement – Evaluates paint, varnish, oxide layers, and non-conductive coatings for uniformity.
• ✔ Weld Inspection – Identifies cracks, lack of fusion, incomplete penetration, and porosity in welds.
• ✔ Heat Exchanger Tube Inspection – Detects corrosion, erosion, pitting, and cracking in heat exchanger tubes without removal.
• ✔ Bolt & Fastener Inspection – Finds cracks, fatigue, and structural weaknesses in bolts and threaded components.
• ✔ Tube & Pipe Inspection – Locates internal and external defects such as cracks, corrosion, and erosion in pipelines.
• ✔ Aerospace Component Inspection – Ensures structural integrity of turbine blades, landing gear, and engine parts in aerospace applications.
• ✔ Quality Control in Manufacturing – Detects surface defects, cracks, and inconsistencies in machined parts, castings, and forgings.

ECT’s versatility, speed, and non-invasive nature make it an essential tool for routine inspections and quality control in critical industries.



Frequently Asked Questions About Eddy Current Testing (ECT)

What are the main advantages of Eddy Current Testing (ECT) over other NDT methods?

ECT is fast, highly sensitive, and requires no direct contact. It can detect surface and near-surface defects without the need for coupling agents or extensive surface preparation.

Can Eddy Current Testing (ECT) detect cracks in all materials?

No, ECT only works on electrically conductive materials such as metals and alloys. It cannot inspect non-conductive materials like plastics, ceramics, or composites.

How deep can Eddy Current Testing (ECT) detect defects?

ECT is effective for surface and near-surface flaws, typically up to a few millimeters deep. For deeper flaws, Ultrasonic Testing (UT) is recommended.



Conclusion: Why ECT is a Game-Changer in NDT Inspections

Eddy Current Testing (ECT) is a powerful method for detecting surface and near-surface defects in conductive materials, ensuring safety and reliability. At NWE, we provide specialized third-party NDT supervision for ECT, ensuring:

• Compliance with industry standards (ASME, ASTM, ISO, API)

• Accurate defect detection and interpretation

• Reliable calibration and technique application

• Enhanced quality control and safety assurance
