Liquid Penetrant Testing (PT) – Complete Guide to Dye Penetrant Inspection

Liquid Penetrant Testing (PT) is a widely used non-destructive testing NDT for detecting surface-breaking defects in non-porous materials such as metals, ceramics, and composites. It is an essential technique in aerospace, automotive, oil & gas, and manufacturing industries for identifying cracks, porosity, leaks, and material discontinuities.

What is Liquid Penetrant Testing (PT)?

Liquid Penetrant Testing (PT) is a widely used Non-Destructive Testing (NDT) method designed to detect surface-breaking defects in non-porous materials. By utilizing capillary action, PT draws a liquid penetrant into microscopic cracks, pores, or discontinuities, making them visible for inspection.

The Evolution of Liquid Penetrant Testing (PT) in NDT

Liquid Penetrant Testing (PT) has evolved from early oil-and-chalk methods used in the railroad industry to today’s highly sensitive fluorescent and color-contrast penetrants. With advancements in chemistry and application techniques, PT has become one of the most cost-effective, simple, and reliable NDT methods for detecting surface defects.

Key Definitions in Liquid Penetrant Testing (PT)

Term	Definition
Penetrant Media	A specially formulated liquid that seeps into surface cracks and defects.
Dwell Time	The time the penetrant remains on the surface to allow full defect penetration.
Removing (Excess Penetrant Removal)	The process of cleaning excess penetrant from the surface before applying the developer.
Developer Media	A substance that pulls penetrant from cracks to make defects visible under inspection.

Other Names for Liquid Penetrant Testing (PT)

Liquid Penetrant Testing (PT) is also known as:
✔ Dye Penetrant Inspection (DPI)
✔ Fluorescent Penetrant Inspection (FPI)
✔ Visible Dye Inspection (VDI)
✔ Red Dye Inspection

Despite these variations in terminology, the fundamental principles of PT remain the same across all industries.

Liquid Penetrant Testing (PT): How It Works & When to Use It

Liquid Penetrant Testing (PT) is a widely used Non-Destructive Testing (NDT) method designed to detect surface-breaking defects in non-porous materials. It relies on capillary action, where a low-viscosity liquid penetrates cracks and discontinuities, making them visible after applying a developer.

How Does Liquid Penetrant Testing (PT) Work?

1️⃣ Applying the Penetrant – A low-surface-tension liquid is applied to the component’s surface.
2️⃣ Dwell Time (Penetration Time) – The liquid seeps into surface cracks, pores, or discontinuities.
3️⃣ Excess Penetrant Removal – The surface is cleaned, leaving penetrant only in the defects.
4️⃣ Applying Developer – A developer extracts the penetrant from cracks, making defects visible.
5️⃣ Inspection & Evaluation – The surface is examined under white or UV light (for fluorescent penetrants).

Best Applications of Liquid Penetrant Testing (PT)

✅ Detecting surface cracks, porosity, and weld defects in welds, castings, forgings, and machined parts.
✅ Used in aerospace, automotive, oil & gas, power generation, and manufacturing industries.

❌ Limitations of Liquid Penetrant Testing (PT)

❌ Cannot detect subsurface defects – For internal flaws, methods like Ultrasonic Testing (UT) or Radiographic Testing (RT) are required.
❌ Not suitable for porous materials – Penetrant absorption may lead to false indications.

By following this structured process, Liquid Penetrant Testing (PT) ensures reliable, cost-effective defect detection for a wide range of industrial applications

Key Benefits and Limitations of Liquid Penetrant Testing (PT)

Liquid Penetrant Testing (PT) is a widely used Non-Destructive Testing (NDT) method that offers high sensitivity, ease of use, and affordability for detecting surface defects. However, like any inspection technique, it has certain limitations that must be considered.

🔹 Advantages of Liquid Penetrant Testing (PT)

✅ High Sensitivity to Surface Defects – Capable of detecting microscopic cracks, porosity, and discontinuities that may go unnoticed by the naked eye.

✅ Cost-Effective & Minimal Equipment Required – Unlike Ultrasonic Testing (UT) or Radiographic Testing (RT), PT does not require expensive machinery, making it an affordable NDT method.

✅ Versatile Across Multiple Materials – Suitable for metals, ceramics, composites, and some plastics, provided the material is non-porous.

✅ Fast & Efficient Defect Detection – The simple application process enables quick inspections, making PT ideal for routine maintenance and large-scale inspections.

✅ Portable & Easy to Implement – PT can be conducted on-site or in workshops with minimal setup, making it an accessible NDT method for field inspections.

🔹 Limitations of Liquid Penetrant Testing (PT)

❌ Restricted to Surface Defects Only – PT is unable to detect subsurface flaws or internal discontinuities, requiring alternative methods like UT or RT for deeper inspections.

❌ Not Suitable for Porous or Absorbent Materials – Concrete, wood, and some composites can absorb the penetrant, leading to false readings and unreliable results.

❌ Requires Thorough Pre-Cleaning & Surface Preparation – Any contamination (oil, grease, dust, or rust) can interfere with penetrant absorption and affect accuracy.

❌ Affected by Temperature & Environmental Conditions – High temperatures can evaporate the penetrant, while extremely cold conditions may slow down penetration time, impacting test reliability.

📌 When selecting Liquid Penetrant Testing (PT) as an inspection method, it is important to consider these advantages and limitations to ensure accurate, effective defect detection in industrial applications.



Types of Liquid Penetrant Testing (PT) Methods: Choosing the Right Approach

Liquid Penetrant Testing (PT) is available in two primary methods, each suited for different inspection needs, sensitivity levels, and industry applications. The selection depends on the defect size, required visibility, and environmental conditions.

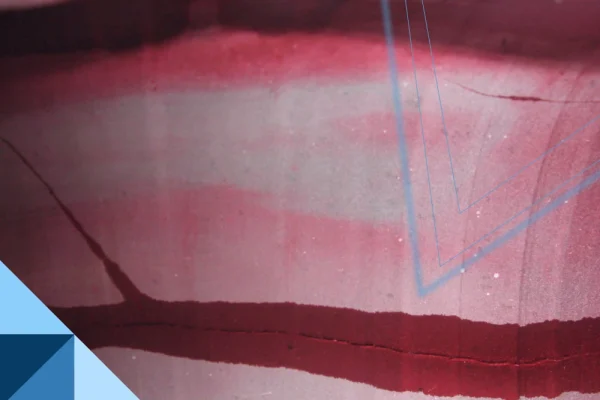

1️⃣ Visible Dye Penetrant Testing (Color-Contrast PT)

🔹 How It Works: Uses a red or brightly colored penetrant, which contrasts against the test surface under white light, making defects easily visible.
🔹 Best For: General-purpose inspections, including weld testing, structural components, pipelines, and machinery parts.
🔹 Advantages:
✔ No need for specialized lighting (ideal for outdoor or field inspections).
✔ Cost-effective and easy to apply.
🔹 Limitations:
❌ Less sensitive to fine micro-cracks compared to fluorescent methods.

2️⃣ Fluorescent Liquid Penetrant Testing (Fluorescent Penetrant Inspection – FPI)

🔹 How It Works: Uses a fluorescent dye penetrant that glows under ultraviolet (UV) light, enhancing defect visibility.
🔹 Best For: High-precision industries such as aerospace, power generation, medical devices, and precision engineering, where detecting micro-cracks and tiny surface flaws is critical.
🔹 Advantages:
✔ Higher sensitivity – Detects finer, shallower defects than visible dye PT.
✔ Ideal for safety-critical components where early defect detection is essential.
🔹 Limitations:
❌ Requires UV lighting and a controlled inspection environment.
❌ More expensive and time-consuming than visible dye PT.

Which PT Method is Right for You?

• If you need a quick, cost-effective inspection for welds and general structures, Color-Contrast PT is the best choice.
• If your application requires high sensitivity and precision, such as aircraft or turbine blade inspections, go with Fluorescent PT (FPI).

By selecting the right PT method, industries can ensure maximum defect detection accuracy, improving product reliability and safety

Step-by-Step Process of Liquid Penetrant Testing (PT)

1️⃣ Cleaning – Remove dirt, grease, and contaminants from the surface.
2️⃣ Applying Penetrant – Apply liquid penetrant evenly across the test area.
3️⃣ Dwell Time – Allow penetrant to seep into surface cracks (time depends on material and defect size).
4️⃣ Excess Penetrant Removal – Wipe off extra penetrant to avoid false indications.
5️⃣ Drying the Surface – Ensure the component is dry before applying the developer.
6️⃣ Applying Developer – The developer draws penetrant out of cracks for defect visibility.
7️⃣ Inspecting the Surface – Examine for visible defect indications.
8️⃣ Final Cleaning – Remove all chemicals and prepare the part for further processing.

Industry Standards & Codes for Liquid Penetrant Testing (PT)

Liquid Penetrant Testing follows strict international standards to ensure accuracy, repeatability, and compliance in various industries.

🔹 ASTM Standards for PT

• ASTM E165 – Standard Practice for Liquid Penetrant Testing.
• ASTM E1417 – Standard Practice for Fluorescent Penetrant Inspection (FPI).

🔹 ASME & API Standards for PT

• ASME BPVC Section V – PT guidelines for weld inspections in pressure vessels.
• API 650 – PT procedures for above-ground storage tanks.

🔹 Aerospace & Automotive Industry Standards

• AMS 2644 – Aerospace specification for penetrant materials.
• ISO 3452 – International standard for liquid penetrant inspection.

✅ Liquid Penetrant Testing (PT) Inspection Checklist

Step	Task	Status (✔/✘)
Pre-Inspection	Verify material type & suitability for PT.	⬜
	Select appropriate penetrant (visible or fluorescent).	⬜
	Ensure compliance with ASTM, ASME, API, or ISO standards.	⬜
Application	Clean surface thoroughly.	⬜
	Apply penetrant evenly across the surface.	⬜
	Allow sufficient dwell time based on material & defect size.	⬜
Removal & Developer Application	Wipe excess penetrant with proper cleaning method.	⬜
	Dry the surface completely before applying the developer.	⬜
	Apply developer evenly & allow time for defect indication.	⬜
Inspection & Final Steps	Inspect surface under appropriate lighting conditions.	⬜
	Record defect locations & determine next actions.	⬜
	Perform final cleaning before returning the component to service.	⬜

This checklist ensures a systematic, accurate, and industry-compliant PT inspection process.

Frequently Asked Questions About Liquid Penetrant Testing (PT)

What is the difference between Visible Dye and Fluorescent Penetrant Testing?

Visible Dye PT uses red or colored penetrant visible under white light, while Fluorescent PT (FPI) uses a UV-sensitive penetrant that glows under ultraviolet light for higher sensitivity.

Can PT be used on rough or porous surfaces?

No, PT is only effective on smooth, non-porous surfaces. On rough or porous materials, the penetrant can get trapped and cause false indications.

What is the typical dwell time in PT?

Dwell time varies between 5 to 30 minutes depending on penetrant type, material surface, and defect size. A longer dwell time ensures better defect penetration.
