Acoustic Emission (AE) Testing – A Complete Guide to Structural Health Monitoring

Acoustic Emission (AE) testing is an advanced NDT techniques used to detect and monitor structural defects by capturing high-frequency sound waves emitted from materials under stress. This technique is widely applied in industries such as aerospace, oil & gas, power generation, and manufacturing for real-time defect detection and integrity assessment.



In This Guide, We Will Cover:

✔ What is Acoustic Emission (AE) Testing?
✔ How AE Testing Works
✔ Principles of Acoustic Emission Inspection
✔ Differences Between AE and Other NDT Methods
✔ Advantages & Limitations of AE Testing



Let’s explore how AE testing ensures structural reliability and early defect detection!



What is Acoustic Emission (AE) Testing?

Acoustic Emission (AE) is a passive NDT technique that detects and analyzes stress-induced sound waves generated by material deformation, crack growth, or corrosion. Unlike traditional NDT methods that require external energy (e.g., X-rays or ultrasound), AE relies on the material itself producing signals when stressed.

✔ Purpose: Real-time monitoring of crack propagation, fatigue, leaks, corrosion, and structural integrity.
✔ Applicable Materials: Metals, composites, ceramics, and concrete.
✔ Common Applications: Pressure vessel monitoring, pipeline integrity testing, aerospace structural analysis, and bridge inspections.



How Acoustic Emission (AE) Testing Works

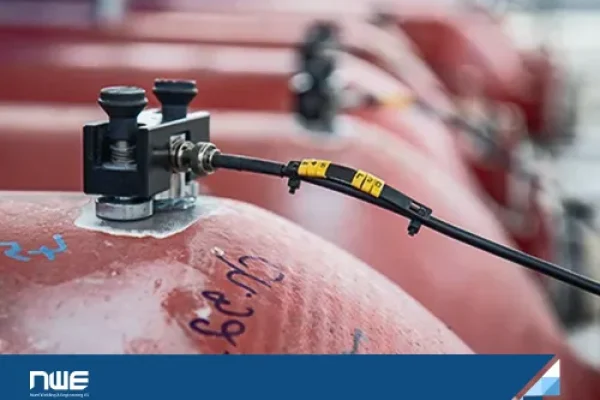

AE testing involves placing highly sensitive piezoelectric sensors on the structure being inspected. These sensors detect ultrasonic stress waves generated by active defects, allowing inspectors to assess the material’s condition in real time.

🔹 Step 1: Sensor Placement
✔ AE sensors are strategically placed on the surface of the component.
✔ Coupling agents are used to enhance signal transmission.

🔹 Step 2: Stress Application
✔ The material is subjected to mechanical stress (e.g., pressure, thermal expansion, or external loading).
✔ Active defects emit stress waves detected by AE sensors.

🔹 Step 3: Signal Processing & Analysis
✔ The received signals are filtered, amplified, and analyzed to identify defect patterns.
✔ Advanced software determines defect location, severity, and growth rate.

🔹 Step 4: Interpretation & Reporting
✔ Inspectors classify AE events based on intensity and frequency.
✔ AE data is compared with industry standards to assess structural health.



Principles of Acoustic Emission (AE) Inspection

AE testing is based on the principle that cracks, leaks, and material defects generate stress waves when a material is loaded. These waves travel through the material and are detected by AE sensors.

✔ Key Principles of AE Testing:
✅ AE is a passive monitoring method that only detects active defects.
✅ Real-time inspection allows continuous monitoring of structural health.
✅ AE signals are analyzed based on amplitude, duration, energy, and frequency.
✅ Localization techniques determine the exact position of defects.

AE testing is often used for long-term structural health monitoring (SHM) in industries where early detection is critical.



Differences Between AE and Other NDT Methods

While AE testing shares similarities with other NDT methods, it offers unique advantages in detecting active defects.

NDT Method	Detection Mechanism	Key Features
Acoustic Emission (AE)	Detects stress waves from active defects	Real-time monitoring, early warning system
Ultrasonic Testing (UT)	Uses sound waves to detect internal defects	Requires external energy source
Radiographic Testing (RT)	Uses X-rays/gamma rays to capture internal images	Best for volumetric defect detection
Magnetic Particle Testing (MT)	Detects surface/subsurface cracks in ferromagnetic materials	Limited to magnetic materials
Eddy Current Testing (ECT)	Uses electromagnetic induction for flaw detection	Best for conductive materials



✅ Advantages of AE Over Other NDT Methods:

✔ Early defect detection before catastrophic failure
✔ Real-time monitoring without stopping operations
✔ Covers large areas with fewer sensors
✔ Non-invasive and cost-effective for long-term monitoring

❌ Limitations of AE Testing:

❌ Only detects active defects (not passive flaws)
❌ Requires stress application for defect activation
❌ Signal interference can occur in noisy environments



Advantages of Acoustic Emission (AE) Testing

✅ Real-time monitoring: Detects defects as they develop under stress.
✅ Minimal surface preparation: No need for extensive cleaning.
✅ Covers large areas: Fewer sensors required compared to UT or MT.
✅ Non-destructive & passive: No need for external energy sources.
✅ Ideal for remote monitoring: Used in offshore platforms, bridges, and nuclear plants.



Limitations of Acoustic Emission (AE) Testing

❌ AE detects active defects only, not dormant flaws.
❌ Requires stress application to trigger emissions.
❌ Signal interpretation requires advanced expertise and filtering.
❌ Not suitable for thin materials with low stress wave propagation.



Where is AE Testing Used?

Acoustic Emission (AE) testing is widely used in industries where real-time monitoring and early defect detection are crucial for safety and operational efficiency. The ability to detect active flaws as they develop makes AE an essential tool for structural health monitoring.

✔ Oil & Gas: Pipeline integrity monitoring, tank inspections.
✔ Aerospace: Aircraft fuselage & wing crack detection.
✔ Power Generation: Monitoring boilers, turbines, and nuclear reactors.
✔ Civil Engineering: Bridge and concrete structure health monitoring.
✔ Manufacturing: Detecting weld defects, fatigue damage, and material degradation.



Acoustic Emission (AE) Testing Standards & Codes

AE testing follows strict international standards to ensure accuracy and reliability.

ASTM AE Standards

✔ ASTM E650 – Standard Guide for Mounting Piezoelectric Acoustic Emission Sensors
✔ ASTM E1067 – Acoustic Emission Examination of Fiberglass Reinforced Plastic Resin (FRP) Tanks/Vessels
✔ ASTM E1932 – Standard Guide for Acoustic Emission Examination of Small Parts

ISO AE Standards

✔ ISO 12716 – Non-Destructive Testing – Acoustic Emission
✔ ISO 18081 – Non-destructive testing — Acoustic emission testing (AT) — Leak detection by means of acoustic emission

ASNT AE Guidelines

✔ ASNT SNT-TC-1A – Recommended Practice for AE Testing Personnel Qualification
✔ ASNT CP-189 – Certification of AE Inspectors



Acoustic Emission (AE) Testing Checklist

A structured AE testing checklist ensures accurate defect detection, compliance with industry standards, and optimal safety. This checklist covers pre-inspection preparation, execution, data analysis, and post-inspection review to ensure an effective AE inspection process.

Pre-Inspection Checklist (Preparation & Setup)

Task	Description
Define Inspection Scope	Identify target structures (pipelines, tanks, turbines, etc.) and expected failure modes.
Review Industry Standards	Ensure compliance with ASTM E1932, ISO 12716, ASME V Article 12, API 579-1 standards.
Check Structural Conditions	Evaluate material type, thickness, and expected stress levels.
Confirm Sensor Selection	Choose proper AE sensors (piezoelectric, fiber-optic, or MEMS) based on inspection needs.
Calibrate AE Equipment	Verify signal sensitivity and frequency range for accurate detection.
Establish Background Noise Levels	Measure environmental noise to filter out false signals.
Position Sensors Correctly	Ensure proper sensor placement for optimal wave propagation coverage.
Check Data Acquisition System	Confirm proper functioning of data loggers, amplifiers, and signal processors.
Verify Safety Protocols	Implement hazard analysis, PPE usage, and operational safety measures before testing.



AE Testing Execution Checklist (Real-Time Monitoring & Data Collection)

Task	Description
Start AE System & Monitor Signals	Begin recording acoustic signals from active defect sources.
Apply Load or Stimulus (if required)	Introduce stress (pressure, temperature, or mechanical load) to detect real-time emissions.
Track Signal Amplitude & Frequency	Identify potential defect signatures by analyzing AE waveform characteristics.
Filter & Classify Signals	Differentiate between structural noise and defect-related emissions.
Use Multi-Sensor Correlation	Cross-check signals from multiple sensors for precise defect localization.
Detect & Mark AE Events	Identify crack propagation, corrosion activity, or other failure indicators.
Monitor Data Trends	Observe real-time signal trends to determine if defects are static or actively growing.
Ensure Continuous Data Logging	Maintain uninterrupted recording for accurate trend analysis.



Post-Inspection Analysis & Reporting Checklist (Evaluation & Documentation)

Task	Description
Analyze AE Signal Patterns	Assess amplitude, duration, frequency, and location of emissions.
Correlate AE Data with Stress Events	Match emissions with applied loads or operational conditions.
Classify Defects	Determine whether indications correspond to cracks, delaminations, leaks, or corrosion.
Compare Findings with Industry Standards	Evaluate defects using API, ASME, or ASTM acceptance criteria.
Generate Inspection Report	Document sensor positions, signal data, defect locations, and analysis conclusions.
Recommend Next Steps	Suggest repairs, continued monitoring, or additional NDT methods (UT, RT, PT, etc.) if necessary.
Archive Data for Future Analysis	Store AE recordings and analysis reports for long-term monitoring.



Final Compliance & Safety Check (Ensuring Reliability & Regulatory Adherence)

✔ Verify all inspection objectives were met according to the project scope.
✔ Confirm data accuracy & repeatability with secondary verification methods.
✔ Ensure safety measures were followed throughout the AE inspection.
✔ Provide actionable recommendations based on AE signal trends and severity classification.

This comprehensive AE testing checklist ensures precise, standardized, and regulation-compliant inspections in industries like oil & gas, aerospace, power generation, and civil engineering



Conclusion: Why Acoustic Emission (AE) Testing is Essential

Acoustic Emission (AE) testing is a powerful real-time monitoring technique that detects structural defects and material degradation in critical assets across various industries. By analyzing stress-induced emissions, AE provides early warning signs of potential failures, helping industries take preventive actions before catastrophic damage occurs.

Key Benefits of AE Testing:

✅ Real-Time Defect Monitoring – Detects active cracks, leaks, and material failures as they occur.
✅ Minimal Operational Disruption – AE testing can be conducted without halting operations, reducing downtime.
✅ High Sensitivity to Micro-Defects – Identifies defects at their earliest stages before they become critical.
✅ Applicable Across Multiple Industries – Used in oil & gas, aerospace, power plants, civil engineering, and manufacturing for reliable structural health assessment.
