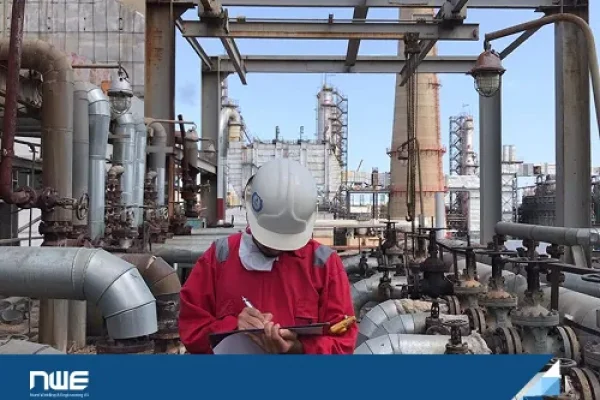

What is Piping?

Piping refers to the network of pipes, fittings, valves, and other components used to transport fluids, gases, or slurries within industrial or commercial facilities. These systems are designed to handle specific pressures, temperatures, and flow rates to ensure the safe and efficient movement of materials.

Piping systems are critical in industries like oil and gas, petrochemicals, power generation, and construction, where precise fluid management is essential for operational efficiency, safety, and system performance.

Piping vs. Pipeline: Key Differences Explained

Aspect	Piping	Pipeline
Purpose	Transports materials within a facility.	Transports materials over long distances.
Location	Primarily inside plants or industrial sites.	Extends across large geographical areas.
Design Standards	Governed by ASME codes for internal systems.	Governed by API standards for cross-country transport.
Material	Alloy steel, stainless steel.	Carbon steel, which offers durability for long distances.
Size	Typically smaller in diameter.	Often larger for bulk transport.

While both piping and pipelines transport fluids, they differ in scope and purpose. Piping systems are confined to industrial facilities, directing fluids between equipment and processes. Pipelines, on the other hand, are extensive networks that transport fluids over long distances, often across regions or countries, typically carrying oil, gas, or water. Understanding these differences is key for professionals involved in fluid transport and infrastructure.

Essential Components of a Piping System

A piping system is more than just pipes; it consists of various components working together to ensure safe and efficient fluid transportation. Understanding these elements is crucial for designing, installing, and maintaining a reliable system.

Types of Pipes in Piping Systems: Materials, Standards, and Applications

Pipes are essential for transporting liquids, gases, and slurries in various industries. The material selection depends on temperature, pressure, and chemical compatibility. Common pipe materials include:

• Carbon Steel: Used in oil, gas, and water pipelines.

• Stainless Steel: Ideal for high-corrosion environments like chemical plants.

• PVC: Suitable for low-pressure systems like water and wastewater.

• Copper: Common in plumbing and HVAC systems for its corrosion resistance and ease of installation.

Standards such as ASME B31.3 and ASTM specifications help guide material selection for safety and durability.

What Are Pipe Fittings? Types, Functions, and Industry Standards

Pipe fittings are used to change the direction, diameter, or branching of piping systems. Key types include:

These fittings are designed according to industry standards for safety and reliability.

Types of Valves in Piping Systems: Selection Guide and Uses

Valves regulate, isolate, and direct flow in piping systems. Different types of valves serve specific functions:

Flanges and Gaskets in Piping: Importance, Types, and Best Practices

Flanges are used to connect pipes, valves, and other equipment. They are paired with gaskets to create tight seals and prevent leaks.

Essential Piping Components: Supports, Insulation, and Expansion Joints

Additional components improve system performance and longevity:

• Pipe Supports and Hangers: Ensure stability and prevent sagging.

• Insulation Materials: Maintain temperature control and prevent energy loss.

• Expansion Joints: Accommodate thermal expansion, reducing stress on the system.

By selecting the right materials and components and adhering to industry standards, engineers can design piping systems that are safe, efficient, and durable in diverse industrial environments.

Types of Piping Systems: An Overview

Piping systems are crucial across industries, designed to meet specific operational needs. Whether it’s for transporting chemicals, steam, or liquefied gases, selecting the right type of piping ensures safety, efficiency, and long-term reliability.

1) Industrial Piping Systems: High-Pressure, Process, and Utility Piping

Industrial piping encompasses a variety of sub-systems tailored for specific purposes—ranging from high-pressure transport to general utilities.

High-Pressure Piping

Used mainly in the oil & gas and power generation sectors, high-pressure piping handles fluids under intense pressure. These systems are built from tough materials like carbon steel and alloy steel to withstand extreme operating conditions safely.

Process Piping

Common in chemical, petrochemical, and pharmaceutical industries, process piping is designed to move raw materials and gases during production. These systems often deal with reactive chemicals and high temperatures, requiring robust engineering for safe operation.

Utility Piping

Utility piping supports day-to-day facility operations, distributing essential services like water, air, and steam. It’s critical for systems involving cooling, heating, and energy supply.



2. Jacketed Piping

Jacketed piping maintains precise temperature control—ideal for transporting viscous fluids like molten sulfur. An outer layer (jacket) circulates steam, oil, or coolant, making it highly valuable in chemical, pharma, and food processing industries.

3. Cryogenic Piping

Engineered for ultra-low temperatures (as low as -196°C), cryogenic piping transports liquefied gases like LNG or liquid oxygen. Materials such as stainless steel (304/316) and aluminum alloys prevent brittleness. These systems conform to strict codes like ASME B31.3 for cryogenic safety.

4. Offshore/Marine Piping

Designed to endure harsh marine environments, offshore piping systems transport oil, gas, and seawater. Built with corrosion-resistant materials like duplex stainless steel and titanium, they resist salt exposure, pressure variations, and dynamic ocean loads.

5. Fire Protection Piping

These systems deliver water or fire-suppressing agents (e.g., foam) during emergencies. Common materials include galvanized steel and CPVC, and installations often feature sprinklers, hydrants, and other safety components—crucial for residential, commercial, and industrial buildings.

6. Slurry Piping

Used in mining, wastewater treatment, and similar industries, slurry piping is built for abrasive fluids. Materials like HDPE and ceramic-lined steel offer exceptional wear resistance, ensuring durability in challenging environments.

Residential & Commercial Piping Systems: Plumbing and HVAC Solutions

In both residential and commercial buildings, piping systems form the backbone of essential infrastructure. From delivering clean water to regulating indoor temperatures, these systems are crucial for plumbing and HVAC (Heating, Ventilation, and Air Conditioning) applications.

Plumbing Systems

Plumbing piping ensures the safe delivery of potable water and the efficient removal of wastewater. Common materials include:

• Copper – Durable and corrosion-resistant

• PEX (Cross-linked Polyethylene) – Flexible, easy to install

• PVC and CPVC – Lightweight and ideal for drain lines and hot water respectively

Proper design and installation are key for leak prevention, water efficiency, and long-term maintenance.

HVAC Piping

HVAC piping supports climate control systems by circulating hot water, chilled water, refrigerants, and air. These systems play a vital role in:

• Heating (boiler connections, radiator lines)

• Cooling (chilled water loops, refrigerant lines)

• Ventilation (air ducts and exhaust systems)

Materials like steel, copper, and insulated flexible tubing are commonly used, depending on the system’s temperature and pressure requirements.

Differences Between Piping Systems Based on Industry and Usage

While the purpose of all piping systems is to transport fluids, their design, materials, and installation vary significantly based on the industry and intended usage.

Category	Industrial Piping Systems	Residential & Commercial Piping Systems
Purpose	Transport fluids under extreme conditions	Water, gas, air, and refrigerant distribution
Types	High-pressure, Process, Utility, Jacketed, Cryogenic	Plumbing, HVAC
Common Materials	Carbon steel, alloy steels, stainless steel	Copper, PEX, PVC
Environment	Harsh conditions: high temperatures, pressure, chemicals	Lower pressure and simpler conditions
Design Requirements	Corrosion resistance, specialized design for chemicals	Simple designs for efficient water and waste flow
Insulation/Coatings	Often required (for high-pressure and corrosive environments)	Generally not required (except for HVAC applications)
Regulatory Standards	Industrial codes, safety standards	Plumbing codes, HVAC standards
Applications	Oil & gas, petrochemical, power generation, manufacturing	Residential homes, commercial buildings, heating/cooling systems



Materials and Standards for Piping

Selecting the right materials and adhering to the correct standards is critical in ensuring that piping systems are safe, reliable, and durable. Each type of material comes with its own set of advantages and challenges, and it is essential to consider factors such as the operating environment, pressure, temperature, and the type of fluid being transported.

Common Materials Used in Piping Systems

Material	Key Features	Common Applications
Carbon Steel	Durable, cost-effective, but prone to corrosion	Industrial piping (oil & gas, power generation)
Stainless Steel	Corrosion-resistant, withstands high temperatures and chemicals	Food processing, pharmaceuticals, chemical industries
PVC (Polyvinyl Chloride)	Lightweight, corrosion-resistant, easy to install	Residential plumbing (drainage, waste, vent piping)
PEX (Cross-Linked Polyethylene)	Flexible, resistant to freezing and scaling	Residential plumbing (hot & cold water distribution)
Copper	Durable, antimicrobial, easy to work with	Water supply lines (residential & commercial)

Selecting the Right Materials Based on Operating Conditions

The choice of material is determined by various operating factors, including:

• Temperature: Some materials, like PVC or PEX, can be damaged by high heat. Stainless steel and carbon steel are more suitable for high-temperature environments.
• Pressure: High-pressure applications, such as in oil & gas or power plants, require stronger materials like carbon steel or alloy steel.
• Corrosion Resistance: For corrosive environments, such as in chemical plants, stainless steel or specialized alloys are necessary to prevent degradation.
• Chemical Compatibility: The type of fluid being transported must be considered. For example, PVC is ideal for transporting water, but it is unsuitable for transporting aggressive chemicals. Stainless steel or titanium is preferred in these cases.

Choosing the right materials and following industry standards is crucial for ensuring the reliability, safety, and longevity of a piping system. Engineers must consider the application, operating conditions, and regulatory requirements to select materials that meet specific needs. With materials and standards constantly evolving, staying updated is essential for designing efficient, durable, and safe piping systems.

Industry Standards for Piping Systems

To ensure safety and efficiency, piping systems must follow industry standards. The ASME B31 series, developed by the American Society of Mechanical Engineers, is the most widely used set of codes across industries.

Key ASME B31 Codes

• B31.1 – Power Piping
  For power plants and district heating systems (e.g., fossil & nuclear).

• B31.3 – Process Piping
  Used in chemical, petrochemical, and refinery operations; handles high pressure and hazardous fluids.

• B31.4 – Liquid & Slurry Pipelines
  Regulates pipelines for crude oil, petroleum products, and slurries.

• B31.5 – Refrigeration Piping
  Covers systems using refrigerants like ammonia and freon.

• B31.8 – Gas Transmission
  For natural gas pipelines and distribution networks.

• B31.9 – Building Services
  Applies to HVAC and plumbing in residential and commercial buildings.

• B31.12 – Hydrogen Piping
  For hydrogen transport—supporting clean energy systems.



Jobs Involved in Piping in the Industry

Piping systems are essential across multiple industries, such as manufacturing, construction, petrochemicals, pharmaceuticals, and energy. Skilled professionals are needed to design, maintain, and inspect these systems to ensure their safety and efficiency. Here are key jobs in the piping industry:

1. Piping Engineers

• Role: Design and plan piping systems.

• Responsibilities: Select materials, ensure compliance with standards, and optimize system efficiency while meeting safety and operational requirements.

2. Piping Designers

• Role: Create detailed layouts and specifications for piping systems.

• Responsibilities: Use software like AutoCAD or SolidWorks to design systems, ensuring reliability and smooth functionality throughout the system’s lifecycle, including pipe supports and stress considerations.

3. Piping Inspectors

• Role: Evaluate piping systems for leaks, corrosion, or structural weaknesses.

• Responsibilities: Conduct routine inspections and use non-destructive testing (NDT) to ensure systems comply with safety regulations and standards.

4. Welders and Fabricators

• Role: Join and weld pipe components.

• Responsibilities: Ensure structural integrity and system safety by constructing secure, long-lasting piping systems for various applications.

5. Maintenance Technicians

• Role: Perform routine checks and repairs on piping systems.

• Responsibilities: Prevent failures, particularly in high-pressure systems, to maintain operational efficiency and reduce downtime.

6. Project Managers

• Role: Oversee piping projects.

• Responsibilities: Ensure projects are completed on time, within budget, and to specifications, managing coordination between engineers, designers, contractors, and other stakeholders.



Designing Piping Systems and Engineering

Designing a piping system is crucial for ensuring its safe and efficient operation. A well-designed system optimizes performance while minimizing risks such as leaks, pressure loss, and system failures. Key factors like pressure, temperature, material selection, and flow rate need to be carefully considered. Below are the essential steps involved in designing a piping system:

1. System Requirements Analysis

• Action: Analyze the type of fluid, its temperature, pressure, flow rate, and industry regulations.

• Purpose: Define the system’s operational needs to ensure it operates as required.

2. Piping Layout Design

• Action: Plan the arrangement and routing of pipes.

• Purpose: Minimize elbows and fittings to reduce pressure loss and improve flow efficiency. Ensure proper spacing for pipe supports and insulation.

3. Material Selection

• Action: Select materials for pipes, fittings, and valves.

• Purpose: Ensure compatibility with the fluid and resistance to corrosion, temperature changes, and pressure conditions.

4. Pressure and Flow Calculation

• Action: Perform calculations for pressure drop, flow rate, and friction losses in pipes, valves, and fittings.

• Purpose: Ensure the system can handle operational loads efficiently and maintain smooth fluid flow.

5. Safety and Compliance Considerations

• Action: Design the system to comply with industry standards.

• Purpose: Integrate safety features like pressure relief valves, venting systems, and seismic considerations to safely handle extreme conditions.

A carefully designed piping system ensures that the operations run smoothly, safely, and efficiently. By following these steps, engineers can create systems that meet both functional and safety standards.

Piping Design Software

Piping design and analysis software is essential for industries like oil and gas, petrochemical, and power generation. These tools aid in stress analysis, layout design, and isometric drawings.

Piping Stress Analysis Software

• CAESAR II (Hexagon PPM): Industry-standard for stress analysis, supporting ASME B31, API, and more. Integrates with SmartPlant and CADWorx.

• AutoPIPE (Bentley Systems): Used for structural, seismic, and thermal analysis. Supports ASME, ISO, and other standards.

Piping Layout and 3D Design Software

• AVEVA E3D / PDMS: Leading 3D plant design software, integrates with CAESAR II for stress analysis.

• SmartPlant 3D (Hexagon PPM): Provides intelligent modeling and integrates with stress analysis tools.

• AutoCAD Plant 3D: Ideal for small to mid-size plants, with pipe routing and isometric drawing tools.

Piping Isometric Drawing Software

• ISOGEN (Hexagon PPM): Industry-standard for automated piping isometrics and BOM generation.

• CADWorx: A plant design tool with stress analysis and isometric drawing tools.

• SpoolGen: Used for isometric drawing generation in fabrication.

 Factors Affecting Piping System Design

Key factors influencing piping system design include pressure and temperature conditions, flow rate, space constraints, and considerations for future system expansion. Each factor must be addressed carefully to ensure system longevity and efficiency.



Installing and Commissioning Piping Systems

The installation and commissioning of a piping system are crucial for ensuring its efficiency, safety, and longevity. Proper installation prevents issues such as leaks, pressure loss, and system failure. Below are the key steps for a successful installation process.

Steps in Installing Piping Systems

Site Preparation

• Ensure the site has adequate space and a strong foundation to support the piping system

• Verify all required materials, tools, and equipment are ready before installation begins

Pipe Fabrication and Cutting

• Cut and prepare pipes to the specified dimensions

• Use precise welding or threading techniques to ensure secure connections

Piping System Installation

• Follow the layout plan for accurate installation

• Ensure proper alignment for efficient fluid flow and minimal pressure loss

• Use pipe supports to prevent sagging and ensure durability

Welding and Jointing

• For high-pressure systems, perform welding to create leak-proof connections

• Use Non-Destructive Testing (NDT), like ultrasonic testing, to verify weld quality

Pressure Testing and Inspection

• Conduct pressure tests to confirm the system can handle the required pressure

• Inspect valves, joints, and pipes for defects and perform leak detection

✅ Commissioning the Piping System

Once the installation is complete, the system undergoes commissioning to confirm functionality:

• Flushing: Remove debris and contaminants

• Functional Testing: Ensure components perform as expected under real conditions

• Calibration and Adjustment: Fine-tune the system for optimal performance



Maintenance and Repair of Piping Systems

Proper maintenance and timely repairs are crucial for ensuring the longevity and efficiency of piping systems. Routine care reduces the risk of unexpected failures and optimizes system performance. Here’s how to maintain and repair piping systems effectively.

Preventive Maintenance Practices

Regular Inspections for Leaks and Corrosion

• Regular inspections identify leaks, corrosion, and other damages

• Non-destructive testing like ultrasonic scans detects wear early

• Pressure and flow monitoring helps spot potential problems early

Cleaning and Flushing

• Cleaning and flushing prevent blockages and maintain smooth flow

• Particularly important for chemical transport or high-temperature systems

• Debris removal improves efficiency and avoids system disruptions

Corrosion Monitoring and Prevention

• Corrosion inhibitors and protective coatings prevent material degradation

• Regular corrosion checks using specialized methods ensure reliability

• Fitness for Service (FFS) assessments identify potential weaknesses

Pressure Testing for System Integrity

• Pressure testing ensures the system can handle required pressures

• Identifies weaknesses or leaks that could compromise the system

• Pipeline Integrity Assessments ensure hidden risks are found before they become critical



Repairing Piping Systems

Despite regular maintenance, piping systems may require repairs over time. Addressing issues promptly prevents major failures and ensures continued system efficiency. Here are some common problems that require repair:

Common Piping System Issues

Leaks in Piping Systems

• Leaks are often caused by damaged joints, cracks, or poor-quality welds

• Leak detection systems identify and address issues quickly

• Repairs may involve replacing pipe sections, tightening joints, or re-welding damaged areas

Blockages and Obstructions

• Blockages impede flow, especially in liquid and gas transport systems

• Regular cleaning, and the use of filters or strainers, can prevent blockages

• Severe cases may require pipe replacement or removal of obstructed sections

Pipe Damage from External Forces

• External forces, like earthquakes, pressure surges, or impact damage, can compromise pipe integrity

• Damaged sections need to be replaced, and the system may require re-alignment

Valve and Fitting Repairs

• Valves and fittings regulate system flow, and any damage can lead to inefficiencies or failures

• Valve replacement or repair may be necessary to maintain optimal performance



📜 Standardized Repair Methods (ASME PCC-2)

For safe and compliant repairs, guidelines like ASME PCC-2 provide standardized methods for:

• Welded repairs

• Mechanical clamps

• Composite repairs

• Non-metallic solutions

These methods ensure safety, minimize downtime, and comply with industry standards.

Repair of Pressurized Equipment – ASME PCC-2 Training Course

✅ Ensuring Piping System Longevity

Proper installation, commissioning, and maintenance are key to the efficiency and longevity of piping systems. By following best practices, you can minimize risks and avoid costly downtime, keeping operations running smoothly.

🌟 NWE’s Quality, Health, Safety, and Environmental (QHSE) Services

At NWE, our QHSE services support your piping systems at every stage:

• Risk Management: Identify and mitigate potential risks during installation and operation

• Regulatory Compliance: Ensure systems meet all safety and environmental standards

We offer services like Risk-Based Inspection (RBI) and Fitness for Service (FFS) for continuous evaluations, preventing issues before they escalate.



Applications of Piping Systems Across Industries

Piping systems are essential to fluid and gas transport in nearly every major industry. Each sector has unique requirements, making custom piping solutions critical for safety, efficiency, and compliance.

Oil & Gas

• Onshore/Offshore Pipelines: Use corrosion-resistant coatings

• Refineries: Handle high-temperature and high-pressure fluids

• Gas Distribution: Focus on tight sealing and pressure control

Petrochemical

• Chemical Transport: Requires chemical-resistant materials

• Thermal Control: Maintains optimal conditions during reactions

Pharmaceutical

• CIP Systems: Enable automated, sanitary cleaning

• High-Purity Water Lines: Prevent contamination in production

Food & Beverage

• Sanitary Piping: Made of stainless steel to prevent bacterial growth

• Ingredient Handling: Ensures product quality and safety

Construction & HVAC

• Plumbing: Delivers clean water and removes waste

• HVAC Systems: Distribute hot/cold water or air

• Fire Protection: Uses high-strength piping for safety

Mining

• Slurry Lines: Built for abrasion resistance

• Water Treatment: Supports environmental compliance

✅ Bottom Line:
Well-designed piping systems enhance productivity, safety, and regulatory compliance—making them a cornerstone of industrial success.

Challenges and Solutions in Piping Systems

While piping systems are vital across industries, they face various challenges that can affect performance, safety, and lifespan. Most issues arise during design, installation, or maintenance, but with the right strategies, they’re manageable.

Common Piping Issues & Their Impact

🔧 Leaks & Corrosion

• Cause: Moisture, chemicals, or harsh environments

• Impact: Downtime, safety risks, and costly repairs

🚫 Blockages & Clogs

• Cause: Debris, scale, or sediment buildup

• Impact: Flow restriction, pressure spikes, reduced efficiency

🌍 External Damage

• Cause: Vibration, soil movement, or temperature shifts

• Impact: Cracks, misalignment, or pipe failure

🌡️ Temperature/Pressure Fluctuations

• Cause: Sudden changes in system conditions

• Impact: Stress on joints and seals, potential leaks or bursts

⚙️ Wear & Tear

• Cause: Abrasive fluids or high-velocity flow

• Impact: Erosion, reduced performance, increased maintenance

✅ How to Prevent Failures

• Use corrosion-resistant materials

• Ensure smart system design

• Perform regular inspections and maintenance

With proactive measures, industries can boost reliability, safety, and cost-efficiency in their piping systems.

Solutions to Address Piping System Challenges

These solutions are designed to proactively manage common piping system challenges, improving system reliability, efficiency, and safety.

Innovative Technologies in Piping Systems

As industries evolve, advanced technologies are transforming how piping systems are monitored, maintained, and optimized. These innovations help prevent failures and improve long-term performance.

 Key Innovations

Smart Sensors & IoT

• Embedded sensors monitor flow, pressure, and temperature in real time

• Enable predictive maintenance by detecting issues early

• Reduce downtime and maintenance costs

Robotic Inspection Tools

• Drones and robots with cameras and sensors access hard-to-reach areas

• Deliver accurate diagnostics without manual intervention

• Enhance safety and reduce inspection time

✅ Future-Proofing Piping Systems

While issues like corrosion, leaks, and wear are common, combining:

• High-quality materials

• Smart monitoring

• Regular maintenance
  ensures maximum system reliability.

Embracing innovation not only cuts operational costs but also improves safety, efficiency, and longevity—setting the foundation for sustainable, high-performance piping systems.

Frequently Asked Questions (FAQs) About Piping

What is the Difference Between Piping and Plumbing?

• Piping: Involves transporting liquids, gases, or solids across industries like oil, gas, and food processing, including pipes, fittings, and valves.

• Plumbing: A subset of piping, specifically focused on water systems in buildings (water distribution and wastewater management).

How Much Does Piping Design and Installation Cost?

The cost varies based on:

• Design Costs: Dependent on project size and complexity.

• Installation Costs: Vary by material, pipe size, and environmental conditions.
  For accurate estimates, it’s best to consult with an engineer or contractor.

How to Select the Best Material for a Piping System?

Material selection depends on:

• Fluid Type

• Temperature & Pressure

• Corrosion Resistance

• Cost

Common materials:

• Stainless Steel: For high-temperature environments.

• PVC: For low-pressure applications.

• Copper: For corrosion resistance.
  Professionals can guide you in making the best material choice based on these factors.



Conclusion: The Future of Piping Systems

Upcoming Trends in the Piping Industry

• Composite Materials: Lightweight materials like fiberglass and carbon fiber offer better durability and lower maintenance, particularly in oil and gas industries.

• Automation and Smart Sensors: Sensors embedded in piping systems detect issues like leaks, pressure changes, and temperature fluctuations, enabling predictive maintenance and reducing downtime.

• Sustainable Solutions: The focus is shifting towards eco-friendly materials, energy-efficient designs, and recycled components.

The Role of Digitalization and Smart Technologies in Piping

Digitalization is revolutionizing piping systems:

• BIM (Building Information Modeling): Enables accurate 3D designs that improve system efficiency.

• IoT-enabled Systems: Real-time monitoring and diagnostics reduce maintenance costs.

• AI-driven Analytics: Helps predict failures and optimize system performance.



Final Thoughts on the Importance of Efficient Piping Systems

Piping systems are essential across industries, ensuring smooth operations while reducing leaks, blockages, and corrosion. Efficient systems enhance safety in industrial and commercial environments.

Investing in quality materials, modern technology, and preventive maintenance extends system life and minimizes failures. As industries evolve, technological advancements will make piping systems more efficient, sustainable, and intelligent.

By staying ahead of trends and focusing on improvement, businesses can ensure their piping systems meet modern demands, enhancing both safety and operational success.
