Leak Testing (LT) is a Non-Destructive Testing (NDT) method used to detect, locate, and quantify leaks in sealed systems, pipelines, pressure vessels, and other critical components. It is essential in industries where fluid or gas containment is crucial to prevent safety hazards, environmental contamination, and operational failures.
A leak, even if microscopic, can compromise the structural integrity, efficiency, and reliability of a system. LT methods range from simple visual inspections to highly sensitive techniques like helium mass spectrometry and ultrasonic leak detection. Choosing the right method depends on factors like leak size, testing environment, industry standards, and system pressure.
What is Leak Testing (LT) and What Are Its Applications?
Leak Testing involves various techniques to locate and measure leaks in pipelines, pressure vessels, storage tanks, and other sealed systems. These leaks can result from manufacturing defects, material degradation, welding flaws, or mechanical stress over time.
Key Applications of Leak Testing:
✔ Oil & Gas Industry – Pipeline integrity testing, pressure vessel leak detection.
✔ Aerospace Industry – Ensuring fuel tanks, hydraulic systems, and engine components are leak-proof.
✔ Automotive Sector – Detecting leaks in fuel injectors, radiators, air conditioning systems, and engine blocks.
✔ Medical Devices – Ensuring airtight seals in pacemakers, syringes, and fluid delivery systems.
✔ HVAC & Refrigeration – Leak detection in cooling systems, air conditioning units, and gas pipelines.
✔ Electronics & Semiconductor Industry – Identifying leaks in vacuum systems, hermetically sealed enclosures, and microelectronics.
Leak Testing is essential for ensuring the reliability, performance, and safety of critical systems that handle gases, liquids, or vacuum environments.
Why is Leak Testing Important?
✔ Prevents Safety Risks – Leaks in pressurized systems, gas pipelines, or chemical tanks can lead to explosions, fires, or hazardous exposure.
✔ Ensures Product Quality – In aerospace, automotive, and medical devices, even a minor leak can compromise functionality and lifespan.
✔ Reduces Downtime & Costs – Early leak detection helps prevent system failures and costly repairs.
✔ Meets Industry Regulations – LT ensures compliance with ASME, ASTM, API, ISO, and FDA standards for quality and safety.
✔ Improves Environmental Protection – Preventing gas emissions, fuel leaks, and chemical spills is crucial for sustainability and compliance.
Leak Testing is a vital quality control measure across multiple industries, ensuring that products, components, and infrastructure remain leak-free and reliable throughout their lifecycle.
How Does the Leak Testing (LT) Method Work?
Leak Testing (LT) works by identifying and quantifying leaks in pressurized or vacuum-sealed systems. The method involves introducing a test medium (gas, liquid, or tracer substance), applying pressure or vacuum, and monitoring for leakage indicators. The process varies depending on the sensitivity required, system material, and industry application.
✔ Key Principles of Leak Detection:
1️⃣ Pressure or Vacuum Application – The system is either pressurized or placed under a vacuum to create a pressure difference.
2️⃣ Leak Indicator Introduction – Tracer gases, fluids, or ultrasonic waves help identify leakage points.
3️⃣ Detection & Measurement – Instruments measure pressure changes, gas emissions, or sound waves caused by leaks.
4️⃣ Data Analysis & Evaluation – Results are compared with acceptance criteria to determine leak severity.
✔ Factors Affecting LT Accuracy:
✅ Leak Size & Location – Smaller leaks require more sensitive techniques.
✅ Material Properties – Some materials may absorb or trap leaks, affecting detection.
✅ Environmental Conditions – Temperature, humidity, and pressure fluctuations can influence results.
✅ Test Medium & Method Selection – Choosing the right testing technique ensures reliability.
Different LT methods are used based on application requirements, from simple bubble tests to advanced helium mass spectrometry. Next, let’s explore the types of LT methods and their industrial applications.
Types of Leak Testing (LT) Methods
Various leak testing methods are used based on the type of system, sensitivity required, and industry standards. These methods are classified into Destructive and Non-Destructive techniques.
✅ 1) Pressure Decay Testing (Non-Destructive)
- Measures pressure loss in a sealed system over time.
- Commonly used in automotive, aerospace, and manufacturing.
- Advantages: Simple, cost-effective, and ideal for closed systems.
- Limitations: Less sensitive for detecting very small leaks.
✅ 2) Bubble Leak Testing (Non-Destructive)
- The test object is submerged in water, and air bubbles indicate a leak.
- Used for weld seams, pressure vessels, and pipelines.
- Advantages: Visual and easy to perform.
- Limitations: Limited to detecting relatively large leaks.
✅ 3) Ultrasonic Leak Detection (Non-Destructive)
- Uses high-frequency sound waves to detect leaks in pressurized gas or vacuum systems.
- Common in HVAC, oil & gas, and electrical enclosures.
- Advantages: Works for both large and small leaks, remote detection capability.
- Limitations: Requires trained operators for accurate interpretation.
✅ 4) Helium Leak Testing (Highly Sensitive, Non-Destructive)
- A tracer gas (helium) is introduced into the system, and mass spectrometers detect even the smallest leaks.
- Used in aerospace, medical devices, and high-tech manufacturing.
- Advantages: Extremely sensitive and accurate.
- Limitations: Expensive equipment, requires specialized training.
✅ 5) Vacuum Decay Testing (Non-Destructive)
- Measures vacuum level changes over time in sealed systems.
- Used in pharmaceutical packaging, semiconductors, and vacuum chambers.
- Advantages: High sensitivity for small leaks.
- Limitations: Limited to applications that can be vacuum-sealed.
✅ 6) Dye Penetrant Leak Testing (Non-Destructive, Visual Method)
- A fluorescent or colored dye is applied to one side of the test object, and if it appears on the other side, there is a leak.
- Commonly used in heat exchangers, pipelines, and automotive components.
- Advantages: Simple, cost-effective, and good for detecting cracks or porosity.
- Limitations: Limited to surface defects, slower process compared to gas-based methods.

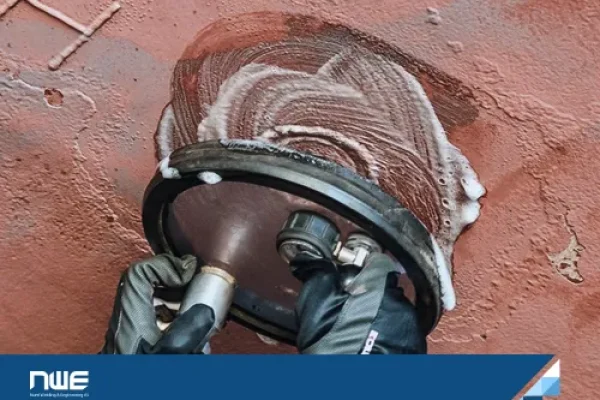

✅ 7) Soap Bubble Testing (Non-Destructive, Low-Tech Method)
- A soapy solution is applied to pressurized components, and bubbles form where leaks exist.
- Used for compressed air systems, gas pipelines, and HVAC.
- Advantages: Inexpensive and easy to perform.
- Limitations: Only detects moderate to large leaks.
✅ 8) Radiotracer Leak Testing (Highly Sensitive, Non-Destructive)
- A radioactive tracer gas is introduced, and specialized detectors identify leaks.
- Used in nuclear power plants, refineries, and high-security environments.
- Advantages: Extremely precise in detecting microscopic leaks.
- Limitations: Regulatory restrictions due to the use of radioactive materials.
Choosing the Right Leak Testing Method
The best LT method depends on factors like sensitivity, industry standards, budget, and system constraints. The table below summarizes key differences:
|
Test Method |
Sensitivity |
Best For |
Advantages |
Limitations |
|
Pressure Decay Testing |
Medium |
Closed systems, pipelines |
Simple, cost-effective |
Not ideal for micro-leaks |
|
Bubble Leak Testing |
Low |
Welded joints, pipelines |
Visual, easy to perform |
Limited to large leaks |
|
Ultrasonic Leak Detection |
High |
HVAC, gas pipelines, electrical enclosures |
Remote detection |
Requires trained personnel |
|
Helium Leak Testing |
Very High |
Aerospace, medical, semiconductors |
Extremely sensitive |
Expensive, complex setup |
|
Vacuum Decay Testing |
High |
Pharmaceutical, vacuum-sealed components |
Small leak detection |
Limited to vacuum systems |
|
Dye Penetrant Testing |
Medium |
Heat exchangers, automotive |
Simple, cost-effective |
Surface defects only |
|
Soap Bubble Testing |
Low |
Gas pipelines, compressed air systems |
Cheap, easy to use |
Only detects larger leaks |
|
Radiotracer Leak Testing |
Very High |
Nuclear, industrial plants |
Extreme precision |
Regulatory concerns |
Leak Testing (LT) Inspection Checklist
A well-structured checklist ensures accuracy, compliance, and efficiency in leak testing across various industries. Use this comprehensive guide to streamline your LT process.
Pre-Inspection Checklist
✔ Verify Testing Requirements
▫ Identify the test method (Pressure Decay, Bubble Testing, Helium Mass Spectrometry, etc.).
▫ Ensure compliance with industry standards (ASME, ASTM, ISO, API).
✔ Check Equipment & Calibration
▫ Confirm pressure gauges, sensors, and leak detectors are calibrated.
▫ Ensure test chambers, fittings, and vacuum pumps are functioning properly.
✔ Prepare the Test Object
▫ Clean surfaces to remove contaminants that could affect leak detection.
▫ Seal all non-tested openings to prevent false readings.
✔ Verify Safety Precautions
▫ Ensure proper ventilation when using tracer gases.
▫ Confirm pressure safety valves are in place for high-pressure tests.
▫ Wear appropriate PPE (gloves, eye protection, and respiratory gear if needed).
Leak Testing Execution Checklist
✔ Perform Test Setup & Configuration
▫ Connect the test object securely to avoid unintended leaks.
▫ Adjust pressure, vacuum, or tracer gas concentration as per test specifications.
✔ Conduct Leak Detection Process
▫ Monitor pressure changes over the required test duration.
▫ Apply bubble solution (for bubble tests) and inspect for visible leakage.
▫ Use helium sniffers or mass spectrometers for precise gas leak detection.
✔ Observe & Record Test Results
▫ Identify leak locations and determine the severity.
▫ Document pressure loss rates, bubble formations, or detector readings.
▫ Compare findings with acceptance criteria per industry standards.
Post-Inspection & Reporting Checklist
✔ Analyze & Interpret Results
▫ Confirm if detected leaks exceed permissible limits.
▫ Evaluate if rework, repairs, or additional testing is needed.
✔ Prepare a Detailed Inspection Report
▫ Include test parameters, leak locations, and result interpretations.
▫ Attach pressure decay curves, helium detection graphs, or photographic evidence.
✔ Verify Compliance & Final Review
▫ Ensure all recorded data aligns with required industry standards.
▫ Approve test completion or recommend corrective actions.
Having this Leak Testing (LT) Checklist on hand ensures a systematic approach to quality control, compliance, and defect prevention in critical applications
Industry Standards & Codes for Leak Testing (LT)
Leak Testing (LT) is governed by various international standards that define testing procedures, equipment calibration, sensitivity levels, and acceptance criteria. These standards ensure consistency, reliability, and compliance across industries such as aerospace, oil & gas, power generation, and pharmaceuticals.
✔ Key Leak Testing Standards
🔹 ASTM Standards for Leak Testing
- ASTM E479 – Guide for Evaluating Material Leakage Sites Using a Liquid Penetrant.
- ASTM E515 – Standard Test Method for Leaks Using Bubble Emission Techniques.
- ASTM E498 – Standard Practice for Leaks Using the Mass Spectrometer Leak Detector or Residual Gas Analyzer in the Tracer Probe Mode.
- ASTM E1003 – Standard Test Method for Hydrostatic Leak Testing.
- ASTM E1603 – Standard Practice for Leakage Measurement Using the Mass Spectrometer Leak Detector or Residual Gas Analyzer in the Hood Mode.
🔹 ASME Leak Testing Standards
- ASME BPVC Section V, Article 10 – Provides leak detection methods for pressure vessels.
- ASME B31.3 – Process Piping Code, which includes leak testing requirements for industrial piping.
- ASME NQA-1 – Quality assurance for nuclear facility applications, including leak testing protocols.
🔹 ISO Standards for Leak Detection
- ISO 20485 – Non-destructive testing – Leak testing – Tracer gas method.
- ISO 20484 – Guidelines for pressure decay and vacuum decay methods.
- ISO 14644-7 – Cleanrooms and associated controlled environments – Testing methods for containment leaks.
🔹 Aerospace & Automotive Industry Standards
- SAE J1267– Aerospace recommended practice for leak testing of aircraft components.
- ISO 29601 – Leak detection in fuel and hydraulic systems for the automotive industry.
These standards provide a framework for selecting, executing, and validating LT methods in critical applications. Ensuring compliance with these guidelines enhances safety, product reliability, and regulatory approval in various industries
Conclusion: Why Leak Testing (LT) is Essential for Industrial Integrity
Leak Testing (LT) plays a crucial role in ensuring the reliability, safety, and efficiency of industrial systems. By detecting leaks in pipelines, pressure vessels, HVAC systems, and other critical components, LT helps prevent costly failures, environmental hazards, and safety risks.
With various methods available—such as Pressure Decay, Bubble Testing, Helium Mass Spectrometry, and Ultrasonic Leak Detection—LT provides flexible solutions for diverse industries, including oil & gas, aerospace, power generation, automotive, and manufacturing.
